DKT

• Euro PIO 1-4 204
• DATA forward 4dB
• Return 0,6dB
• TV4dB
• Data 204MHz + 258MHz-1218MHz

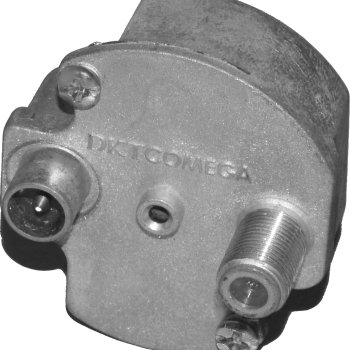

• PIF 1-4 65
• DATA forward 4dB,return 0,6dB;TV4dB;FMdB
• Data 65MHz + 118-1218MHz

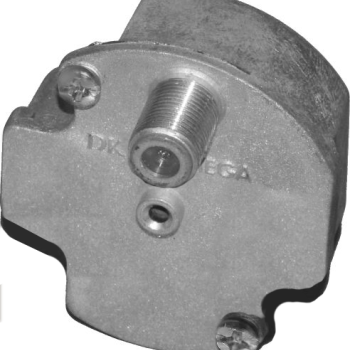

• Euro PIO HNI
• Transparent 5-1218 MHz

• Euro PIO 1-4 65
• DATA forward 4dB,return 0,6dB;TV4dB;FMdB
• Data 65MHz + 118-1218MHz

• T0BX-C
• TV 5-68 + 118-862 MHz
• FM 87,5-108 MHz
• Dæmp. TV VHF 0,3/ UHF 0,8/ FM 1 dB


• T4BX-C
• TV 5-68 + 118-862 MHz, FM 87,5-108 MHz
• Dæmp. TV 4,0 dB/ FM 4,5 dB/ Out 3.8 dB

• T7BX-C
• TV 5-68+118-862 MHz, FM 87.5-108 MHz
• Dæmp. TV 7/ FM 7.5 / In-out 2.8

• T10BX-C
• TV 5-68+118-862 MHz, FM 87.5-108 MHz
• Dæmp. TV 10 dB, FM 10dB, In-Out 1.8 dB

• T13BX-C
• TV 5-68+118-862 MHz, FM 87.5-108 MHz
• Dæmp. TV 13 dB, FM 14 dB, In-Out 0.9 dB

• MM4-65X-C
• Data 3.5 dB/TV 4.5 dB/ FM 5 dB
• Bånd: Data 5-65 MHz, TV/FM 87-862 MHz

• MM4-65DX-C
• Data 4,5dB
• Rev 1 dB
• TV 4.5dB
• FM 4,5dB
• Bånd: Data 5-65MHz, TV/FM 87-1000MHz

• MM10-65X-C
• Gennemgangsdæmpning 2.5 dB
• Bånd: Data 5-65MHz,T V/FM 87-862MHz

• MM8-65SX-C
• Gennogansdämpning XXdB
• bånd data 5-65 TV/FM 87-862MHz

• MM13-65X-C
• Gennemgangsdæmpning 2.0 dB
• Bånd: Data 5-65MHz, TV/FM 87-862MHz

• MM16-65X-C
• Gennemgangsdæmpning 1.7 dB
• Bånd: Data 5-65MHz, TV/FM 87-862MHz

• Type: Euro IMO-H
• Euro IEC Han
• Stikdåse uden filter 0db
• TV 5 - 1218 MHz

• < 0.3 dB at 5 – 204 MHz
• < 0.7 dB at 204 – 1218 MHz
• Loop-through without external ports, fitted with tamper detection sticker.
• E.g. to bypass 1st floor and still provide signal to 2nd floor.
• White faceplate included

Push-In-Filter for PIO TV/DATA 204MHz

DATA forward 4dB,return 0,6dB;TV4dB

Data 204MHz + 258MHz-1218MHz

Push-In-Filter Transparent 5- 1218 MHz

Euro PIO 1-4 204 2T sæt Hvid

DATA forward 4dB,return 0,6dB;TV8dB

Data 204MHz + 258MHz-1218MHz
